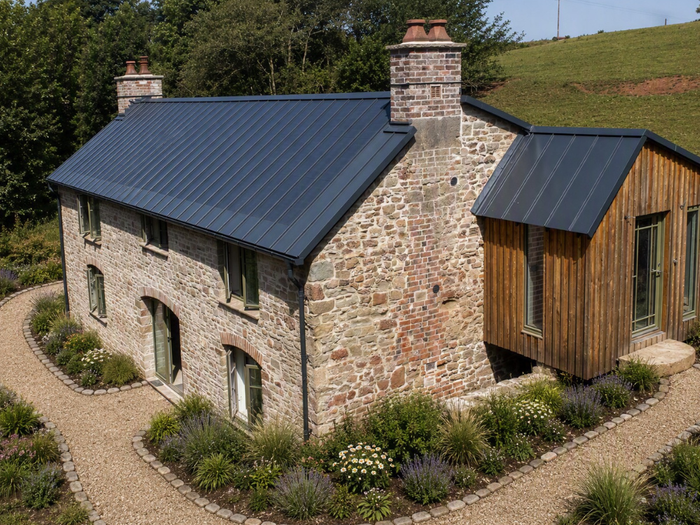

EasySeam Solar System
)
)
EasySeam Standing Seam Roof System and high-efficiency integrated solar PV laminate modules combine seamlessly to create EasySeam Solar System, offering a renewable energy solution that enhances sustainability whilst complementing the building’s design.
Key features
Lightweight Solar PV laminate modules factory bonded to EasySeam Flat Profile Roof panels.
Each panel electrically tested before leaving Vertix Systems manufacturing site.
Solar PV laminate in a range of standard module lengths to meet the total KW output required for the project.
Fully installed weight of less than 11kg per square metre.

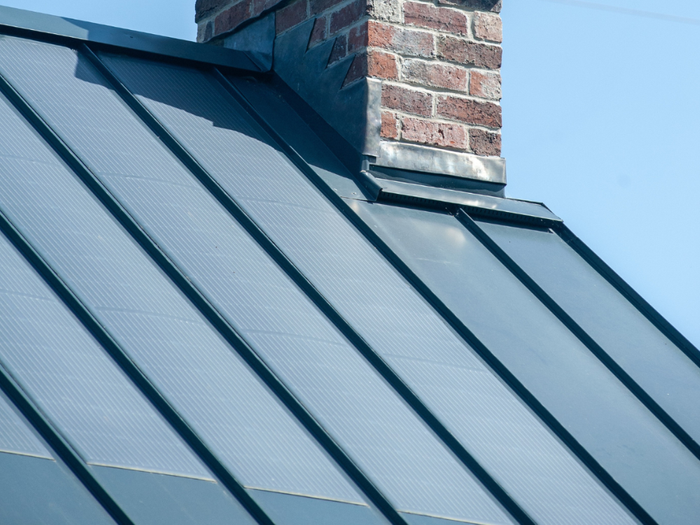

Solar PV laminate module sits discretely within the pan of the EasySeam Roof panel.
Uses multiple bypass diode design to protect the solar modules and ensure they can work effectively in low light conditions and shaded areas.
Uses MCS certified Solar PV laminate capable of achieving a minimum output of 146W/M2.
Cell efficiency of up to 24%, comparable with mounted crystalline PV panels.
Solar PV laminate comes with a 10 year product warranty and 25 performance warranty. Guarantees minimum power output performance of 90% for first 10 years and 80% for following 15 years.
Available with 25 year Confidex® Home Guarantee from Tata Steel, covering appearance and durability of Colorcoat Prisma®pre-finished steel material used in System.
Uses an integrated Solar PV laminate that’s certified to IEC 61215, IEC 61730-1 and IEC 61730-2.
Independently fire tested to achieve highest performance rating BRoof(t4), meaning it can be used on roofs less than 6 metres distance from the property boundary.
Suitable for roof pitches between 5 and 45 degrees.
EasySeam Roof panels and Solar PV laminate are made in the UK.
Can be disassembled for recycling at end of life. Solar PV laminate sourced from a WEEE registered producer (WEE/MM1397AA).
To find out more visit https://vertix.systems/products/easyseam-solar-system/
)
)
)
)
)
)
)
)
)
