Perfect for:

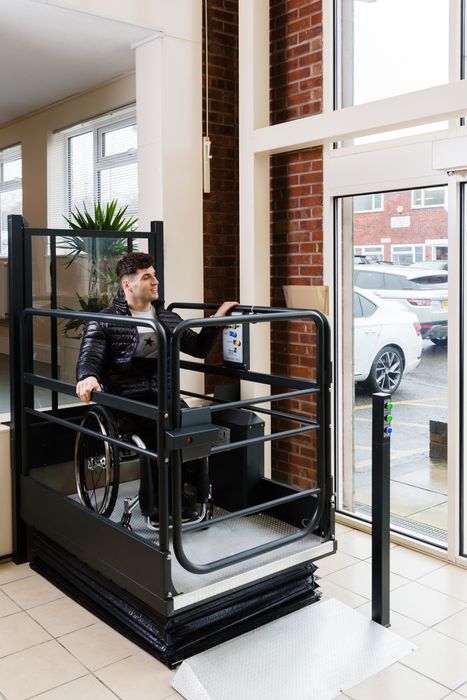

Both functional and appealing, the space-saving and unobtrusive Melody 1 has been designed to improve access where a wheelchair ramp is not a suitable option. This compact and reliable free-standing vertical platform lift provides user-friendly disabled access for heights up to one metre.

Standard Features

• Upper-level gate as standard for public access (A requirement for domestic use when lifting height exceeds 290mm)
• Can be installed inside or outside the building or home
• Provides access for heights up to 1 metre
• Easy to operate, illuminated constant pressure controls
• Safe edges and pressure-sensitive surfaces in both directions of travel
• Battery back-up for emergency lowering

Benefits

• Suitable for both domestic and public access use, internal and external locations, providing safe access and egress for wheelchair users and people with impaired mobility
• Easy to use – convenient controls and shallow approach ramp
• Reliable – battery back-up provides regular operation (up to 30 cycles) in case of a power cut
• Aesthetically pleasing – stainless steel finish as standard, it can also be customised from a range of paint finishes
• Unobtrusive – state of the art hydraulic system provides a smooth and quiet operation
• Smooth and quiet
• Quick, no mess, no fuss installation. External fixed ramp keeps building work to a minimum. Pit option available for internal use.

Technical specification

• Lift Size: Internal platform dimension: 900 mm x 1400 mm (standard)
• Number of Floors/Travel: Maximum travel: 1000mm
• Usage & Suitability: For both domestic and public access use, internal and external locations. Providing safe access and egress for wheelchair users and people with impaired mobility
• Technical Compliance: BS6440:2011 and Machinery Directive 2006/42/EC
• Load Capacity: 250kg
• Installation: Quick installation. External fixed ramp keeps building work to a minimum. Pit option available for internal use.

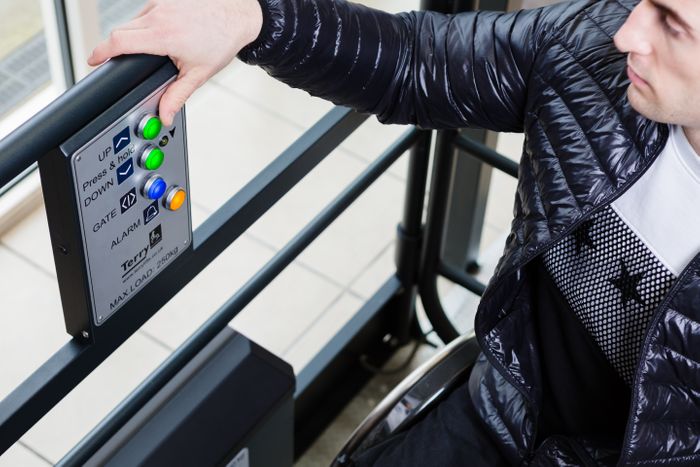

• Operation: Easy to operate, illuminated constant pressure controls
• Power Supply: 220/240 V AC~ 50/60 Hz (no dedicated supply or RCD required)
• Drive System: 24 volt hydraulic scissor drive
• Speed: 0.06 m/sec
• Operating Temperature Range: -10 degrees Celsius to +40 degrees Celsius
• Warranty: 12 months

For your peace of mind

• Designed and manufactured in Britain with the Trustmark guarantee and installed by experts you can trust
• 12 months parts and labour warranty, as standard
• Options for extended warranty (Domestic use only)
• Lifetime testing to ensure reliability
• Building control approval obtained for every installation
• Complies with all relevant safety standards
• Made to meet the highest standards in quality and safety, for many years to come
• Reliable and robust proven technology
